We give security to your movements
The construction and equipment of ROT-AID 200 have been treated to the smallest detail. Everything has been conceived and verified to obtain safety and comfort of use.

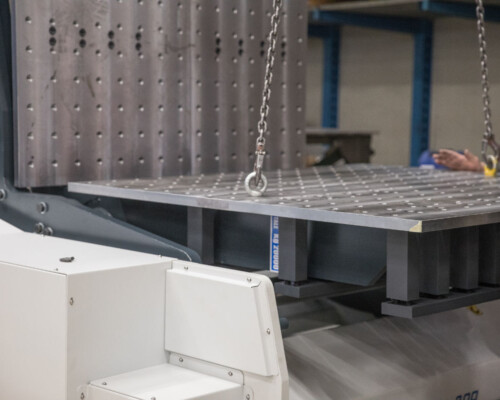

The pieces can be loaded onto the cradle of the Rot-aid 200 either from above or laterally through ropes or magnets or hooks; sideways through forklift.

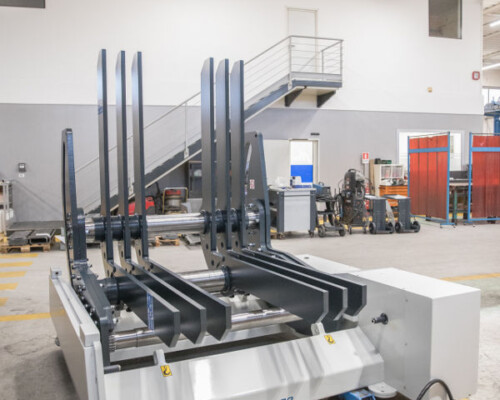

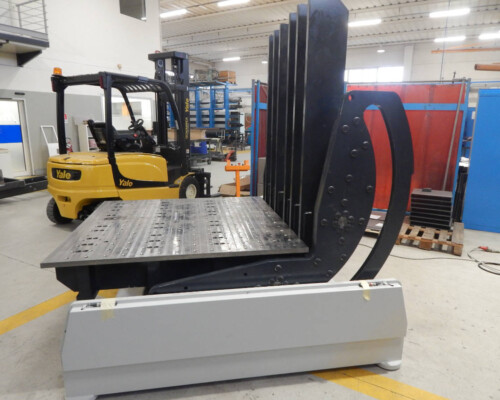

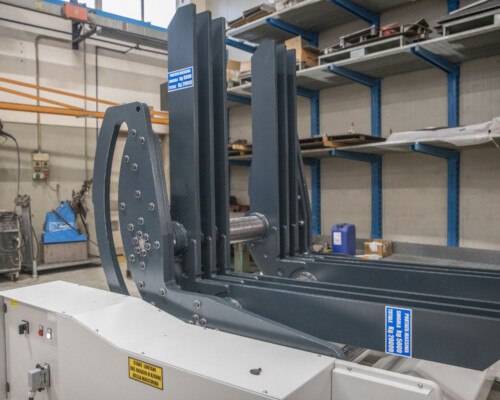

The particular bladed structure of the piece-holder cradle, allows to accommodate also bodies with protrusions. The blades of the piece-holder cradle can be moved in such a way as to make room for particular protrusions or the shape of the bodies to be rotated.
Dimensions of the block to be moved: 1500X1500 mm
Dimensions of the machine
– lenght: 2298 mm
– width: 2174 mm
– height: 2261 mm
Dimensions of the crib: 1500x1500x1310 mm
Adjustable position of the cradle-holder blades
Engine: three phase 4,4 KW
Cradle rotation times from horizontal to vertical and vice versa for a maximum load of 20 tons
– Slow: about 55 seconds
– Fast: about 35 seconds
The noise of the moving machine is about 60 decibels.
The machine is equipped with two-handed movable keyboard and a security system with anti-crushing photocells along the perimeter of the same (it is recommended to outline on the floor an area of limitation of the passage where the machine will be positioned)
Total weight of the machine: about 38 quintals
– RAL 7016 OPACO structure
– RAL 7035 OPACO cradle
Possibility of custom colors
The machine is complete with manuals and CE certifications
Total guarantee on all components: 12 months

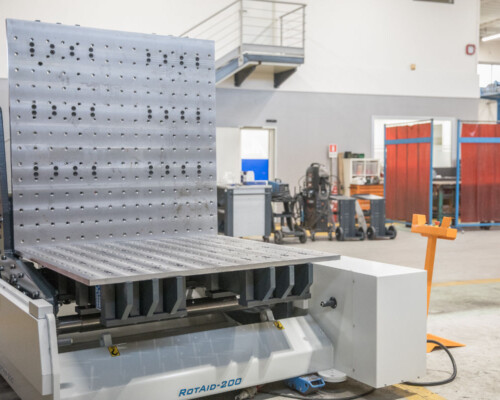

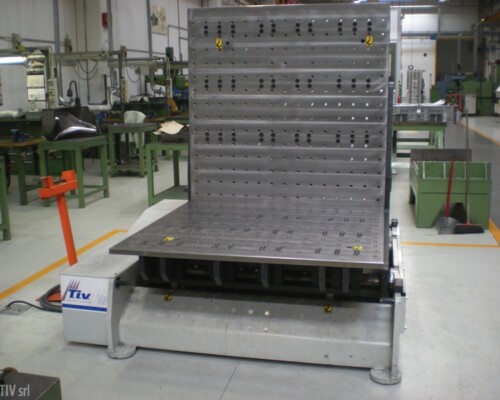

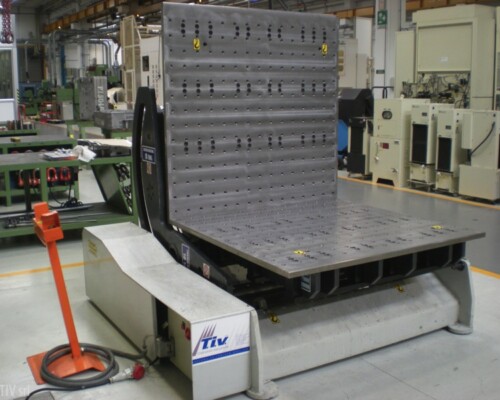

Any accessories: nr 2 perforated plates
Total weight of perforated plates: about 20 quintals
Delivery times : three months from receipt of order
The testing, the installation and use course of the Rot-Aid 200 will be performed at our headquarters in Dosson di Casier (TV), for a total duration of about 6 hours.
