ROT-AID 300

Rotating ROT-AID 300

The construction and features of ROT-AID 300 have been carefully designed down to the smallest detail. Everything has been designed and tested for safety and ease of use.

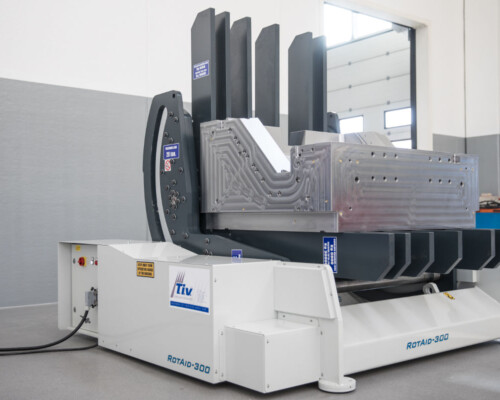

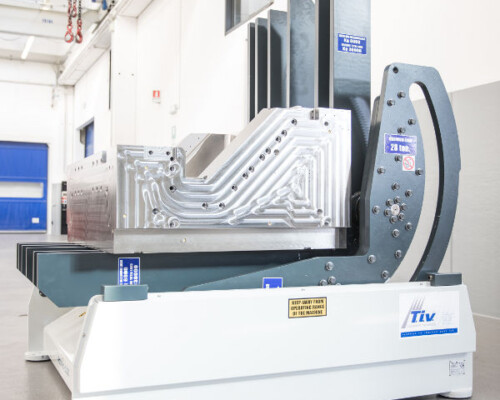

The parts can be loaded onto the Rot-aid 300 cradle from above or from the side using ropes, magnets, or hooks; or from the side using a forklift.

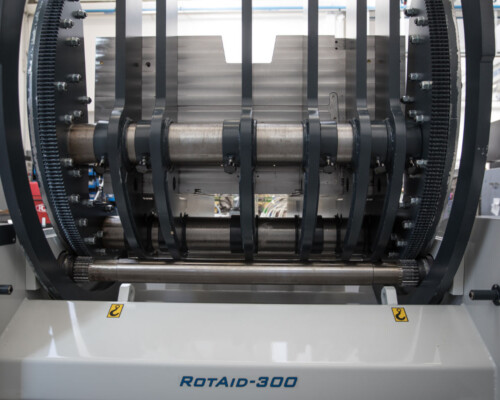

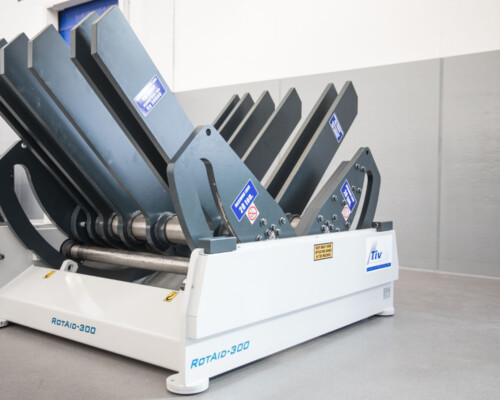

The special blade structure of the workpiece cradle allows it to accommodate even objects with protrusions. The blades of the piece-holder cradle can be moved in such a way as to make room for particular protrusions or the shape of the bodies to be rotated.

The ROT-AID 300 is a high-quality rotating system, designed to meet the needs of our customers in the molding industry.
Our focus on precision, customization, and durability allows us to provide a reliable and high-performance product.

Technical info

Dimensions of the block to be moved: 1500X1500 mm

Dimensions of the machine
– lenght: 2505 mm
– width: 2230 mm
– height: 2261 mm

Dimensions of the crib: 1500x1500x1310 mm
Adjustable position of the cradle-holder blades

Engine: trifase 5,5 KW

Cradle rotation times from horizontal to vertical and vice versa for a maximum load of 28 tons
– Slow: 55 about seconds
– Fast: 35 about seconds

The noise of the moving machine is about 60 decibels.

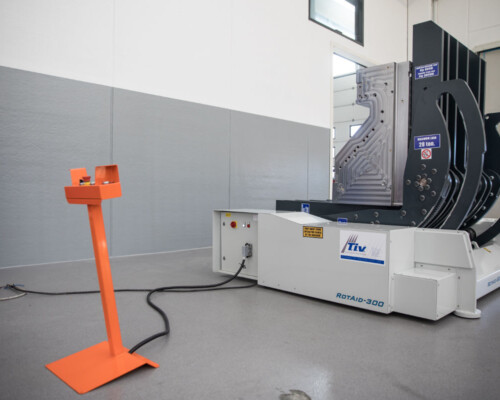

The machine is equipped with two-handed movable keyboard and a security system with anti-crushing photocells along the perimeter of the same (it is recommended to outline on the floor an area of limitation of the passage where the machine will be positioned)

Total weight of the machine: about 48 quintals

Color:
– RAL 7016 OPACO structure
– RAL 7035 OPACO cradle
Possibility of custom colors

The machine is complete with manuals and CE certifications

Total guarantee on all components: 12 months

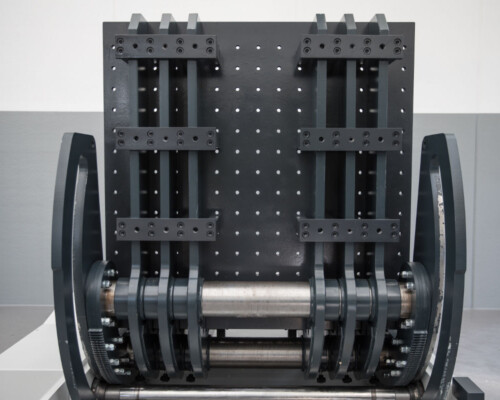

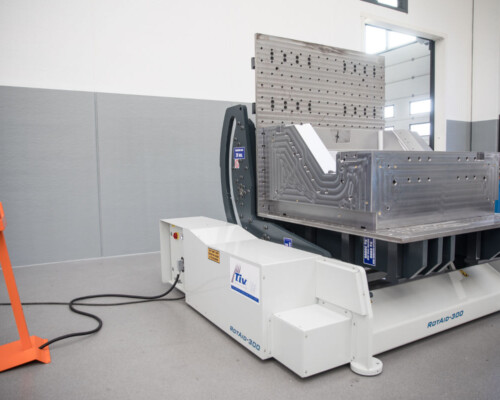

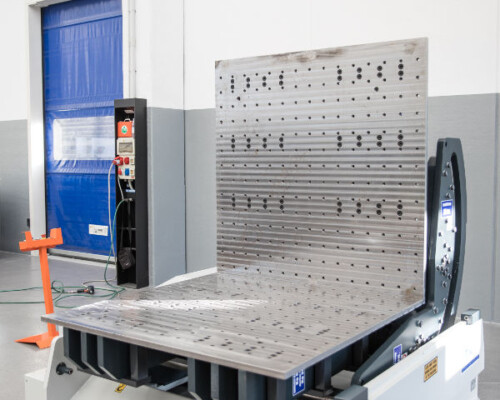

Any accessories: nr 2 perforated plates

Total weight of perforated plates: about 20 quintals

Delivery times: three months from receipt of order

The testing, installation and use of the Rot-Aid 300 will be carried out at our headquarters in Dosson di Casier (TV), for a total duration of approximately 6 hours.
